Alpha 320 Excavator Tree Shear - 11,000-33,000 lbs

SKU: Alpha-320

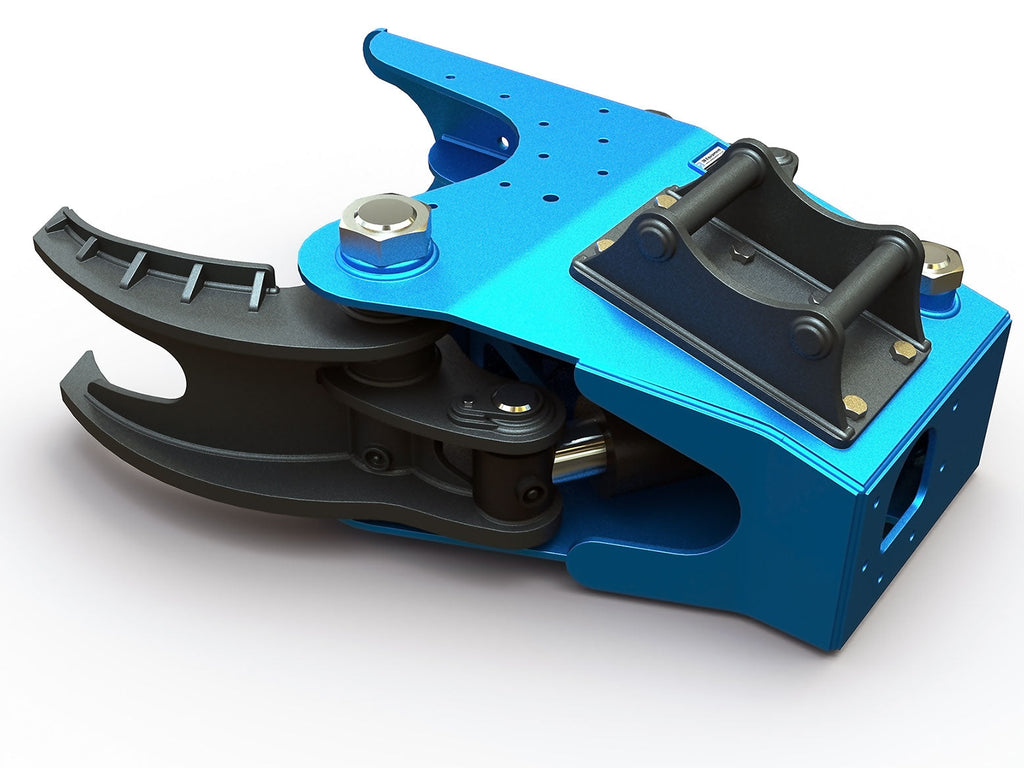

Alpha 320 Excavator Tree Shear

The Alpha 320 is the mid range model and best selling tree shear within the Alpha series. Being both lightweight and incredibly strong for it's size, this model suits excavators from 11,000 to 33,000 lbs.

A very popular choice for farmers and professional contractors - it's fast, simple and efficient whilst offering the most powerful cut capacity in it's class.

It features a heavy duty cylinder, HB500 grade bolt on blade and a bolt on headstock. The side bracket configuration allows the shear to be flipped 90 degrees for horizontal branch delimbing.

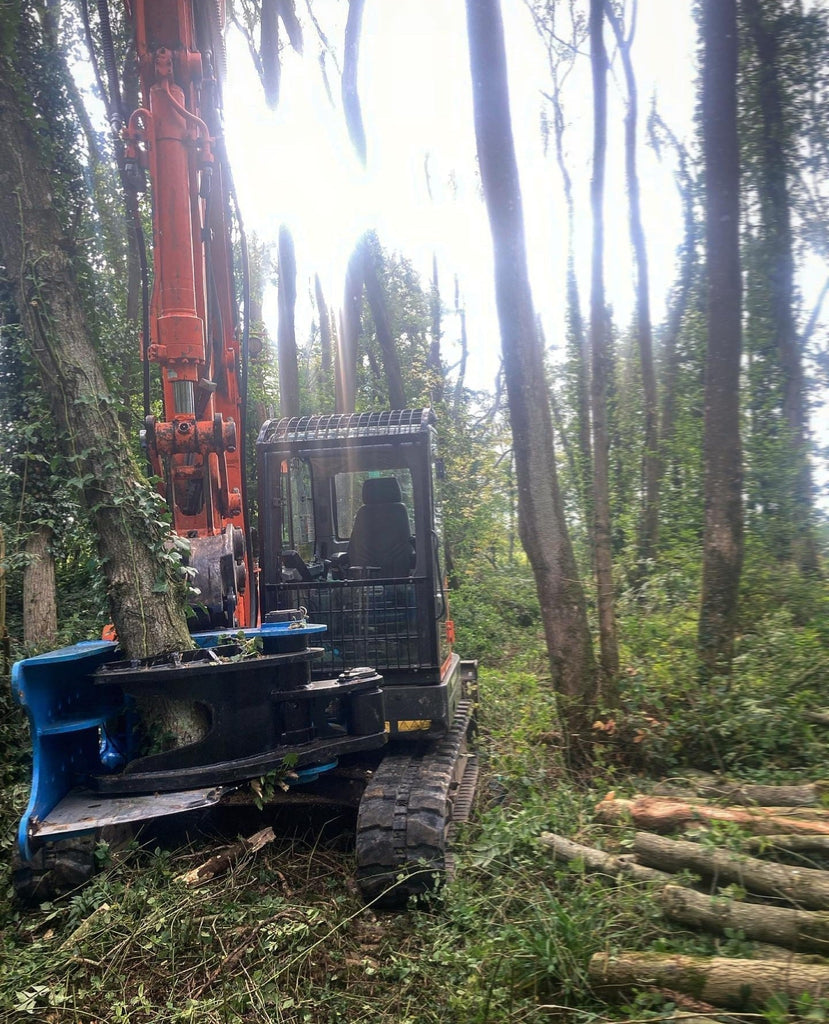

The Alpha 320 is typically an excavator mounted tree shear, but can be configured for telehandlers and other machinery too. It can be used in a range of general forestry applications, from lightweight clearance to coppicing work and overgrown hedgerows, as well as heavier duty clearance and felling applications.

    Additional Side Bracket

    The best selling additional side bracket design incorporates both the standard top and additional bolt on side headstocks, as pictured.

    This economical solution offers excellent value for money whilst enabling the user to operate the tree shear in two orientations - ideal for branch delimbing.

    360 Hydraulic Rotation

    This configuration adopts 360 degree hydraulic rotation and requires twin auxiliary services on the excavator (not available on Alpha 150 model).


    The standard configuration has one bolt on top headstock. The bolt hole pattern on the top for this headstock is the same as the side, allowing headstocks to be interchanged if required.
